Tandem Axle PMI Pontoon Boat Trailers
for Pontoon Boats from 20' up to 27'



PMI pontoon boat trailers come standard with everything you need. LED lights, Radial Tires, Galvanized wheels and axles, large deluxe winch stand with large steps and a 3200 lb front loading winch. All tandem axle pontoon trailers come with our exclusive Rock Guard textured powder coat paint for rust free performance. Brake trailers have 10” disc brakes, with a modern concealed brake coupler built into the frame of the trailer. Our PMI pontoon trailers are built with a 3/16” thick 4” steel tube frame (5” on Super Duty II™ Trailers), the strongest most durable pontoon trailer made. Designed to fit all major pontoon brands such as, Avalon, Barletta, Bennington, Crest, Godfrey, Harris, Larson, Lowe, Manitou, Sun Chaser, South Bay, Sylvan, and more.

10 in disc brakes concealed actuator pontoon trailer bunks pontoon trailer heavy steel powder coated pontoon trailer frames
10” Disc brakes that are not just slip on brakes. We use true Disc brake axles that are held on with the hubs castle nut. Each axle with brakes has 3500lbs of stopping power. Modern concealed brake coupler for all brake trailers. Has a lock out solenoid that locks out the brake fluid from engaging the brakes when backing up. We provide you with a 7way round to 5 flat adapter to allow for this. Modern pontoons have large 25” or 27” pontoon tubes. We use 2x6’s for the bunks to help cradle the larger tubes and support the heavier weight of modern pontoon boats. Our trailers are usually 200-300 lbs heavier than many other brands of pontoon trailers. Don’t be fooled by extra steel where you don’t need it. We spend extra money to use the thicker 3/16” steel tubing to make the strongest frame in the industry. What's Rock Guard Powder Coat?
CLICK HERE!
We start by bead blasting our steel frames to remove all the impurities to the steel, then we add our exclusive Rock Guard powder coating. Rock Guard powder coat is 11Mil thick and is the strongest finish in the industry.

steel fenders led lighting radial tires 3200 lb winch anti bucking loop dual wheel tongue jack
Strong steel fenders that you can actually stand on. Protects your pontoon boat from stones and other road debris.

This frame is the strongest in the industry

pontoon trailer consuruction

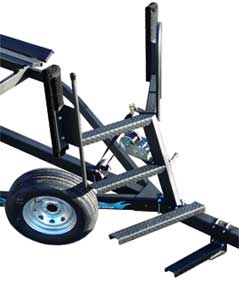

LED lights throughout the trailer. It only cost a few extra dollars to change all the lights out to LED. Incandescent lights burst when you back your trailer in the cold water. LED lights draw a fraction of the power and never give you trouble. ST175/80R13D tires are the most common trailer tire on the market. They have a capacity of 1610 lbs per tire and if you need a new one you can find them anywhere. Most pontoon trailers have a 1600 lb winch. We use a 3200 lb winch because lets face it, pontoon boats are not getting any lighter. A simple U bolt is welded to the winch stand. This prevents the boat from bouncing going down the road. Holds your boat down and forward. Double wheel tongue jacks wont sink down in the dirt, allowing you to move your trailer with ease.

PMI-220 Flote-on Pontoon Trailer

PMI-220 Our 20’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 20’-21'

PMI-220 is 26’3” overall length, with 15’ 2x6 bunks. 3/16” thick 4” steel frame, 13” load range D radial tires,
trailer weighs 1140 lbs and has a 4500lb capacity. Trailer weighs 1140 lbs.

PMI-220 --------- $3600
PMI-220 Disc1 -- $4200
PMI-220 Disc2 -- $4425
No brakes, for storage use.
10" Disc brakes on one axle, stops 3500 lbs.
10" Disc brakes on both axles, stops 7000 lbs.
CLICK HERE TO DOWNLOAD ,CONFIGURE, AND PRICE YOUR PMI-220  PONTOON BOAT TRAILER.
EMAIL IT BACK TO US FOR AVALABILITY.

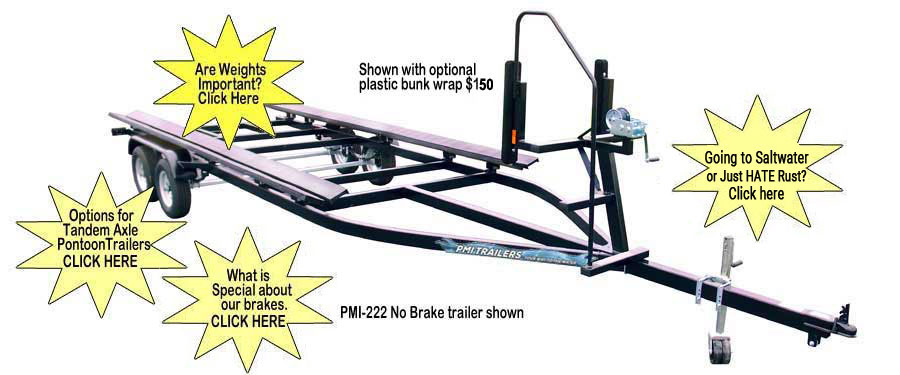

Flote-on PMI-222 Pontoon Boat Trailer
PMI-222 Our 22’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 22’-23'

PMI-222 is 28'7" overall length, with 17' 2x6 bunks. 3/16” thick 4” steel frame, 13” load range D radial tires,
trailer weighs 1200 lbs and has a 4500lb capacity. Trailer weighs 1200 lbs.

PMI-222 --------- $3675
PMI-222 Disc1 -- $4275
PMI-222 Disc2 -- $4525
PMI-222-SD ----- $4875
No brakes, for storage use.
10" Disc brakes on one axle, stops 3500 lb.
10" Disc brakes on both axles, stops 7000 lbs.
Super Duty II™ - trailers have 5" frame instead of 4", 14" tires instead of 13", and tandem axle disc brakes. For modern heavy pontoon boats.
CLICK HERE TO DOWNLOAD ,CONFIGURE, AND PRICE YOUR PMI-222  PONTOON BOAT TRAILER.
EMAIL IT BACK TO US FOR AVALABILITY.

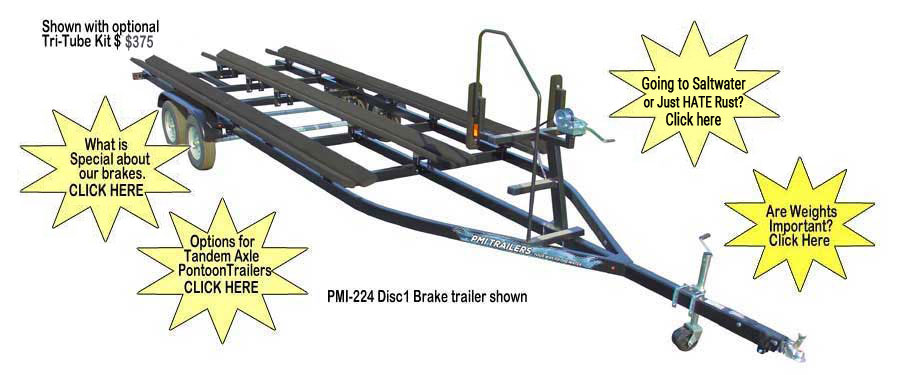

Flote-on PMI224 Pontoon Boat Trailer
PMI-224 Our 24’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 24’-25'

PMI-224 is 30'6" overall length, with 19' 2x6 bunks. 3/16” thick 4” steel frame, 13” load range D radial tires,
trailer weighs 1260 lbs and has a 4500lb capacity. Trailer weighs 1260 lbs.

* Super Duty II™ trailer weighs 1400 lbs and has a 5500 lb capacity.

PMI-224 --------- $3750
PMI-224 Disc1 -- $4350
PMI-224 Disc2 -- $4600
PMI-224-SD ----- $4950
No brakes, for storage use.
10" Disc brakes on one axle, stops 3500 lb.
10" Disc brakes on both axles, stops 7000 lbs.
Super Duty II™ - trailers have 5" frame instead of 4", 14" tires instead of 13", and tandem axle disc brakes. For modern heavy pontoon boats.
CLICK HERE TO DOWNLOAD ,CONFIGURE, AND PRICE YOUR PMI-224  PONTOON BOAT TRAILER.
EMAIL IT BACK TO US FOR AVALABILITY.

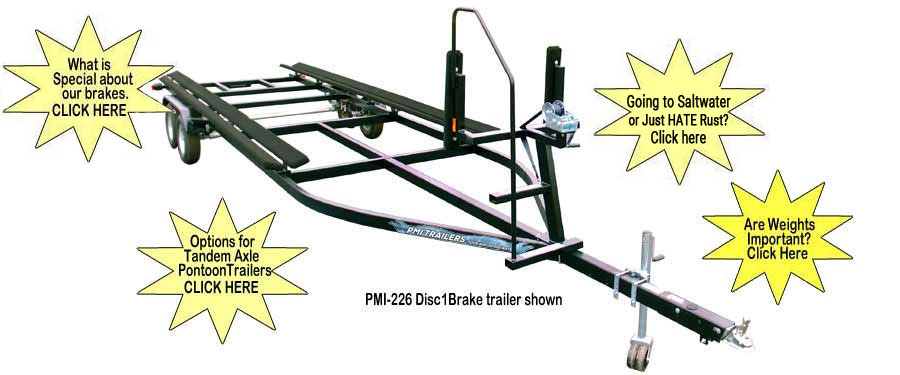

Flote-on PMI-226 pontoon boat trailer
PMI-226 Our 26’ tandem axle PMI bunk style boat trailer for all models of pontoon boats 26’-27'

PMI-226 is 32'3" overall length, with 20' 2x6 bunks. 3/16" thick 4" frame steel, 13" load range D Radial tires,
trailer weighs 1320 lbs and has 4500 lb capacity. Trailer weighs 1320 lbs. The Super Duty II™ is rated at 5800 lbs capacity and weights 1420 lbs.
* Super Duty II™ trailer weighs 1460 lbs and has a 5500 lb capacity.
PMI-226 --------- $3900
PMI-226 Disc1 -- $4500
PMI-226 Disc2 -- $4750
PMI-226-SD ----- $5100
No brakes, for storage use.
10" Disc brakes on one axle, stops 3500 lb.
10" Disc brakes on both axles, stops 7000 lbs.
Super Duty II™ - trailers have 5" frame instead of 4", 14" tires instead of 13", and tandem axle disc brakes. For modern heavy pontoon boats.
CLICK HERE TO DOWNLOAD CONFIGURE AND PRICE YOUR PMI-226 PONTOON TRAILER.
EMAIL IT BACK TO US FOR AVALABILITY.

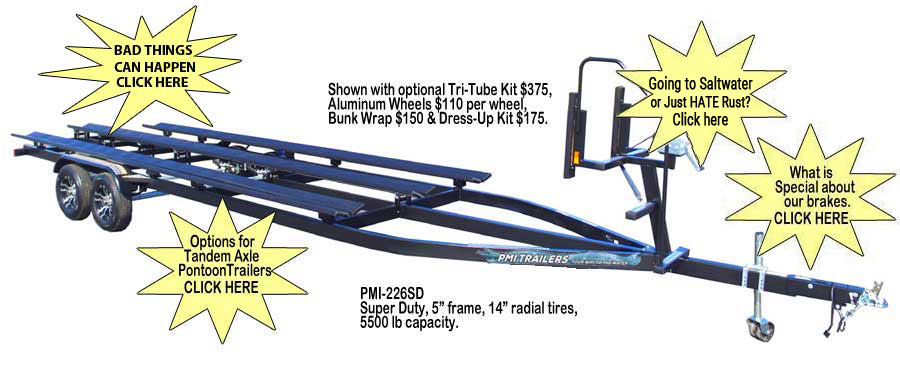

PMI Flote-on 226 Super duty II™ pontoon trailer
Super Duty II™ Packages for 24 & 26 Pontoon Boat Trailers
Heavy Duty Pontoon Trailer Package PMI-222-SD Super Duty II™ For 22'-23' Pontoon Boats - $4875
17'bunks 28'7" Overal length,  5" frame, 5 cross braces, capacity 5500 lbs.
Trailer weighs 1360 lbs.
5” box tube steel frame, 3/16” thick 7 gauge steel tongue, 1/8” thick 11 gauge side rails and cross members make for the strongest frame in the industry. Industry leading baked on Rock Guard textured powder coat finish.

PMI-224-SD Super Duty II™ For 24'-25' Pontoon Boats - $4950
19' bunks 30'6" Overall length, 5" frame, 5 cross braces, capacity 5500 lbs.
Trailer weighs 1400 lbs.
5” box tube steel frame, 3/16” thick 7 gauge steel tongue, 1/8” thick 11 gauge side rails and cross members make for the strongest frame in the industry. Industry leading baked on Rock Guard textured powder coat finish.
PMI-226-SD Super Duty II™ For 26'-27' Pontoon Boats - $5100
20' bunks, 32'3" Overall length, 5" frame, 5 cross braces, capacity 5500 lbs.
Trailer weighs 1420 lbs.
5” box tube steel frame, 3/16” thick 7 gauge steel tongue, 1/8” thick 11 gauge side rails and cross members make for the strongest frame in the industry. Industry leading baked on Rock Guard textured powder coat finish.
overturned pontoon bvoat on trailer

BAD THINGS CAN HAPPEN!



We are constantly trying to warn customers that if you have a large heavy pontoon, you really need to pay attention to the trailer.

A dealer was hauling a boat to a boat show. We are frankly at a loss to explain how a boat could tip over on an 8’ wide tandem axle trailer, but the picture speaks for itself. I suspect it’s a case of a 6000+ boat on a 4000lb. trailer

Understanding Prontoon Trailer Pricing

OUR HONEST OPINION We recognize that many customers don’t want to spend money on brakes. Single axle brakes meet the brake law in most states (except Michigan and Pennsylvania). Our 10” single axle disc brakes will stop about 3500 lbs. Most modern 22’ pontoons with a motor weight about 3000. Tandem axle trailers for 22’ boats weigh about 1000 lbs. Thus 3500 lbs. of braking might satisfy many applications. If you have a 4000+ pontoon on a 1000 lb. trailer, tandem axle brakes should be considered. It’s the owners responsibility to keep your family safe and meet state laws. We want you to stop, not merely slow down.

For Information Call

(877)294-3395 or (574)294-3386
