Hot Dipped Galvanized Trailers for 25'-29' Pontoons
A Galvanized Triple Axle Trailer for
BIG BOATS
Going to Florida or Arizona No Problem
|
|
For 25'-29' big heavy pontoons with large HP or twin engines
5" hot dip GALVANIZED frame, no
rusting, reinforced box frame front & stern lbs., bolt on steel fenders.
Tandem axle 10" disc brakes, stops 7000lbs. Plastic bunk wrap |
|
|
|

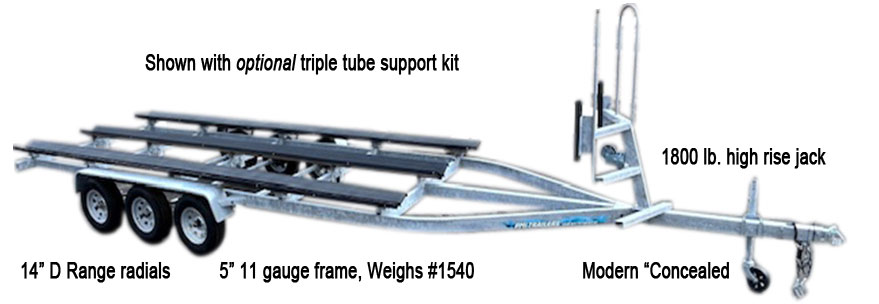

PMI-G-326 Heavy Duty For 25-27' pontoons $6600 - tandem axle brakes |
|
|
|
20 ' bunks 32'6" Overall length, 5" frame, 5 cross braces, capacity 8500
lbs. Trailer weighs 1540 lbs. 5” box tube steel frame, 3/16” thick 7
gauge steel tongue, 1/8” thick 11 gauge side rails and cross members
the strongest frame in the industry. Plastic bunk wrap
over wooden bunks standard. Hot dipped galvanized (no rust) finish.
Tandem axle brakes stop 7000 lbs. |
PMI-G-328 Heavy Duty For 28'-29' pontoons $6650 -
tandem axle brakes
|
22' bunks, 34'3" Overall length, 5" frame, 5 cross braces, capacity
8500 lbs. Trailer weighs 1600 lbs. 5” box tube steel frame, 3/16”
thick 7 gauge steel tongue, 1/8” thick 11 gauge side rails and cross
members. |
|
|
|
Popular Options |
|
|
 |
 |

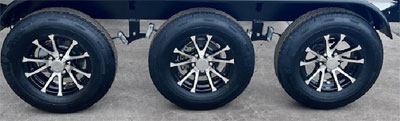

14" Aluminum Rims, exchange for galv. $660 ($110 each x 6).
18" Aluminum upgrade $1200 ($200 each x 6).
exchange price for standard galvanized
rims |
Triple axles brakes stop 8500 lbs.
+ $350 comes with special 3 axle actuator |
|
|
|
 |
Spare Tires
14" Load Range D $115 - on galvanized rim
14" Load Range D on aluminum rim $225
select a carrier or mounting
18" Load Range D $315*
*18" tires standard on aluminum
rims |
|

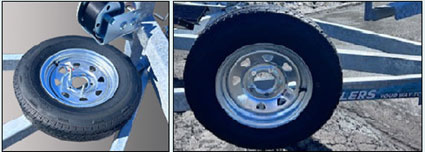

U Bolt Spare Carrier - $20
Side mount Spare Carrier $49 |
|
|
|
|
(to the left) - Stern tie Downs $85
(set of two)

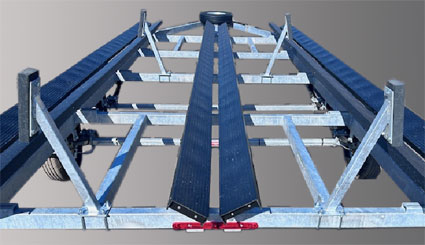

(to the right) - TRI-Tube support Kit $375
Load Guides set of 4 $155 (galvanized) mount on cross members,
sacrificial will not damage tubes |
 |
|
|
|
|
Standard Features on all of our Galvanized frame trailers |
|
|
 |
|
 |
Custom look brake coupler with
tandem brake actuator w/back-up actuator |
10" Disc Brakes |

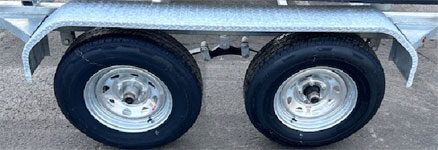

Full length bolt-on steel fenders
Real protection for your pontoon |
 |
 |
 |
| LED lighting in boxes |
Low ride bunk brackets
boat rides low off the ground |

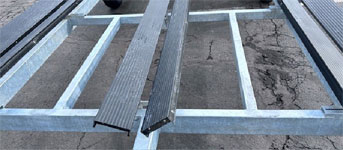

Reinforced frame, 5 cross members
No bouncing or bucking on big boats with larger engines.
|
 |
 |
 |
| Reinforced stern for heavier
engines |
HD winch stand
#1800 high rise tongue jack |
Fully adjustable bunks supported
on cross channels. |
|
|
|
Wooden bunks are covered with plastic “bunk wrap” no torn or worn
carpet.
Our brakes are the best in the industry. 10” disc with a back-up
actuator so you don’t have to get out of the tow vehicle to back up.
Tandem or Triple axle brakes have tandem or triple brake actuators.
Some manufacturers just use single axle brake actuators, they will
work with tandem axle brakes it just takes a little longer for the
fluid to get to the brakes. We want you to STOP,
not slow down.
NEW for 2025 an even heavier duty tongue jack. #1800 lb. with a wide
wheel and it raises higher than ordinary jacks for taller tow
vehicles. No more breaking the jack because you backed-up to far.
|
|
Trailers for Pontoons
