PT-24 or 26 Tandem Axle Pontoon Trailer
STANDARDS & OPTIONS

13” D range radial tires, 4” frame with reinforcement. 5000 lbs. carrying capacity.
Carpeted bunks adjust for boats 8’ wide to 8’ 6” wide.

PT24 - Tandem Axle - Flote-on Pontoon Trailer Features


PT-24T Tandem Axle Trailer for 22’-24’ pontoons
19' bunks, 28' overall length, weighs 980 lbs. Five lateral braces. 5000 lb. capacity.

No Brakes
Your tow vehicle stops the load
 1-Disc
Stops about 3500 lbs.
2-Disc
Stops over 7000 lbs.
$2295 $2845 $3020
clickhere
CLICK HERE TO BUILD YOUR 24T TANDEM AXLE TRAILER

PT-26T Tandem Axle Trailer for 24-27’ pontoons
20' bunks, 30' overall length, weighs 1060 lbs. Six lateral braces. 5000 lb. capacity.

No Brakes
Your tow vehicle stops the load
 1-Disc
Stops about 3500 lbs.
2-Disc
Stops over 7000 lbs.
$2515 $3065 $3240

Heavy Duty Pontoon Trailer Package 24' - $3320 Heavy Duty Package
26' - $3540 Heavy Duty Package


clickhere
CLICK HERE TO BUILD YOUR 26T TANDEM AXLE TRAILER

STANDARD FEATURES of PT-24 or PT-26T Tandem Axle Trailer

pontoon trailer bracing tandem pontoon trailer bracing Pontoon Trailer Bracing
24' and 26' tandem trailers have reinforced bows and two lateral supports in the stern.
Trailers that transport larger, heavier, pontoons need strong, reinforced frames

  Pontoon Trailer Step FenderSteel Fenders offer real
protection for your boat.
Step ponts on the front,
back, and on the top.

Modern LED lighting. Less trouble from bulbs, loose
connections, lasts longer, glows brighter.

13" D range RADIAL tires on
galvanized rims. 1610 lb.
capacity. Best tire available.
Galvanized rim looks sharp
won't rust around the lugs.


Tail lights in waterproof
boxes to eliminate damage.
   dual wheel tongue jack

Dual wheel
tongue jack for
extra stregnth.
Moves easier.


 Specifications for PT-24T or 26T Tandem Axle Trailer NO BRAKES
4” frame 11 gauge steel. 5 or 6 cross braces (side frame supports) connect and support the side rails.
PT24T and PT26T have "ultra" reinforced bows and vertical braced reinforced sterns.
These models are often for heavier pontoons. Wether you need it or not, we want the trailer properly reinforced.
Pontoon tubes are supported on 10 bunk brackets (5 each side) connected to the main frame.
 Pontoon tubes ride on full length 2” x 4” bunks covered with marine grade rubber back carpeting.

Two 3500 lb. axles with 4-13” D range RADIAL tires yields a carrying capacity of 5000 lbs.
We limit our capacity to 5000 lb. because of the rating of the coupler.
Please note: Different trailer companies have different ways of arriving at capacities. Our way is the DOT method.
We do not understand how some companies take chances over rating their trailers. All you have to do is look at the tires.

Lighting is the modern LED style standard. Wiring is in a custom made harness, no loose wires.
Tail lights are in protective cages with the side marker lights also protected.

A “baked on” powder-cote finish protects the steel. Steel is washed and cleaned before powder coating.
An adjustable winch stand is included. The winch stand has boarding steps and a  handrail.
An 1800 lbs. winch helps you pull your boat onto the trailer. The stand also has an “anti bucking” loop to help secure your
boat when traveling. A 1500 lb. dual wheel "swing away" tongue jack and front tongue crutch is standard.

Trailers conform to or exceed all DOT (Department of Transportation) rules for lighting, chains, etc.
For Canadian customers, our weight paperwork and titles are in both lbs. and metric.

Trailers are “ready to go”. There are no hidden charges; inbound freight, make-ready are included.
Print this page and take it with you when you when shopping. Indiana or Michigan sales taxes apply.

Popular Options for for the PT-24T amd PT-26T Tandem Axle Trailer

Deluxe winch stand for pontoon trailer

Deep Winch Stand $50


Extra depth for bow mounted trolling motors, or protuding center tubes.
Deluxe Stand and H.D winch in the Tri Tube Kit
pontoon trailer bunk wrap
Plastic Bunk Wrap
24'-$95   26'-$105

Protects carpeted bunks,
makes launching easier.

Aluminum pontoon trailer wheels

Aluminum Rims each $75


Exchange for galvanized rims
3200 lbs front loading pontoon trailer winch
 3200 lbs. Front Loading Winch + $50


Exchange 1600 lbs. winch
Some heavy modern boats need a stronger winch.

pontoonboat wind guides
Load or Wind Guides (set of four) $85


Helps center your pontoon on a windy day
or a rough lake. Angled back to help
prevent damaging spray fins.

Mounts with U bolts onto any cross member.
pontoon trailer options


13" spare tire $85
Mounted on frame.

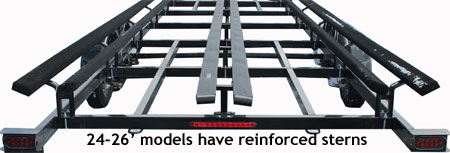

  Triple Tube Kit $299

Our kit includes our Deluxe Winch Stand with 3200 lb. winch option (standard). Most triple tube pontoons are big, heavy boats that need a stronger winch stand and winch. Kits can be full length or 3/4 to fit all triple tube boats.

Stern Extension for Triple Tube Pontoons $200
What is a Stern Extension ? - Click Here
pontoon trailer stern extension
Some brands of new pontoon boats have center tubes that extend beyond the back of the outside tubes.
Some are 2’+ and the engine often extends another 2’-3’ beyond the back of the center tube engine pod.
When matching a trailer to this type of boat you can step up a frame size or buy the optional frame extension.

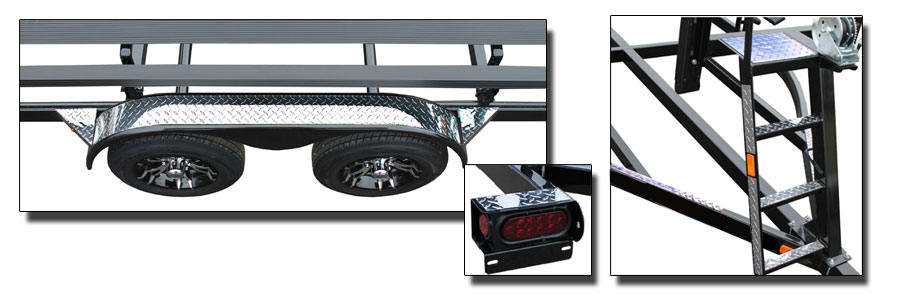

Dress Up Kit $150 Chrome Diamond plate on the trailer.

Chrome diamond plate on the winch stand, steps, tail lights and fenders. 12” pieces on the front frame and small pieces on the tail light bracket. Diamond plate really stands out on the black trailer. Competition offers $1,000+ “custom” packages; we can accomplish the same look for a couple hundred dollars. Dress it up more with bunk wrap and aluminum wheels.

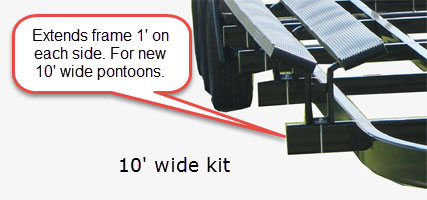

10 foot wide pontoon trailer kit For the new 10' wide pontoons. $275
swing tongue for pontoon trailer  Swing Tongue +$245 (for tandem axle)

Saves 24” from overall length. Use swing tongues when
trying to fit a trailer into a storage building.
The Heavy Duty Swing Tongue kit includes two safety pins.
Swing tongues are not recommended for boats over 4000 lbs.

BRAKE OPTIONS
For  2016 every trailer we sell will have the modern disc braking system. If you tow frequently you will want disc brakes for the superior braking feature. See the web for the benefits of disc brakes. If you tow infrequently but need brakes on your trailer because of weight, you will want disc brakes. Old fashion drum brakes on boat trailers cal (will) lock up from water sitting in the drums rusting the springs and moving parts. The automotive industry switched to disc brakes twenty years ago. The price of disc brakes is within a couple hundred dollars and you'll pay that to have the drum brakes serviced in two years.
modern pontoon trailer brake couplerOURS Modern “custom” style brake actuator. Along with modern disc brakes our brake trailers have the modern custom look brake coupler with back up lock out. (your brakes won’t engage when backing up) old style trailer brake couplerNOT OURS

An Editoriral Regarding Brakes
We’ve wanted to switch to disc brakes for years. They are so superior to drum brakes that its an outrage that most trailers still come with old fashioned drum brakes. Everyone seems to think that disc brakes are so much more expensive. The fact is that disc brakes are a bit more expensive but most manufacturers, distributors and dealers take additional profits on brakes. Here’s one manufacturers pricing:

Stocking Distributor-$525 | Distributor-$600 | Dealer-$650 | Retail-$825

The trailer manufacturer doesn’t “make” the brakes. He’s certainly is entitled to some profit for installing them on the trailer. But, the distributors and dealers don’t “do anything” except add their profit margins to the cost of the brakes.The price can raise $300 between the manufacturer and your sale price, this is ridiculous. Our manufacturer has sharpened his pencil on disc brake pricing. We take NO PROFIT on brakes so as to offer you an incentive first to purchase brakes and secondly to give you the very best product at a fair price.


CLICK HERE TO DOWNLOAD CONFIGURE AND PRICE YOUR PT24T TRAILER.
EMAIL IT BACK TO US FOR AVALABILITY.
WE WILL CALL YOU BACK WITHIN 4 HOURS.

CLICK HERE TO DOWNLOAD CONFIGURE AND PRICE YOUR PT26T TRAILER.
EMAIL IT BACK TO US FOR AVALABILITY.
WE WILL CALL YOU BACK WITHIN 4 HOURS.

For Information Call

800-877-1544 or 574-970-1311
